Dimensions:
Weight: 15.4 oz
Footprint: 5.25” x 7.63”
Combined deck thickness: .33”
Design Features: *Denotes new feature
*100% designed and manufactured in America.
*Configurable (or removable) rubber cleats for enhanced bag retention.
*Aluminum baseplate and ARCA rail hardcoat anodized to MIL-A-8625 Type III.
*KADI designed 2.6” long ARCA rail for mounting to industry standard ball heads. Hardware installed with medium thread
locker and torqued for secure fitment.
*Clipped corners reduce weight.
-Lightening windows double as grips, lashing points, and visual access to confirm position of locking levers, etc.

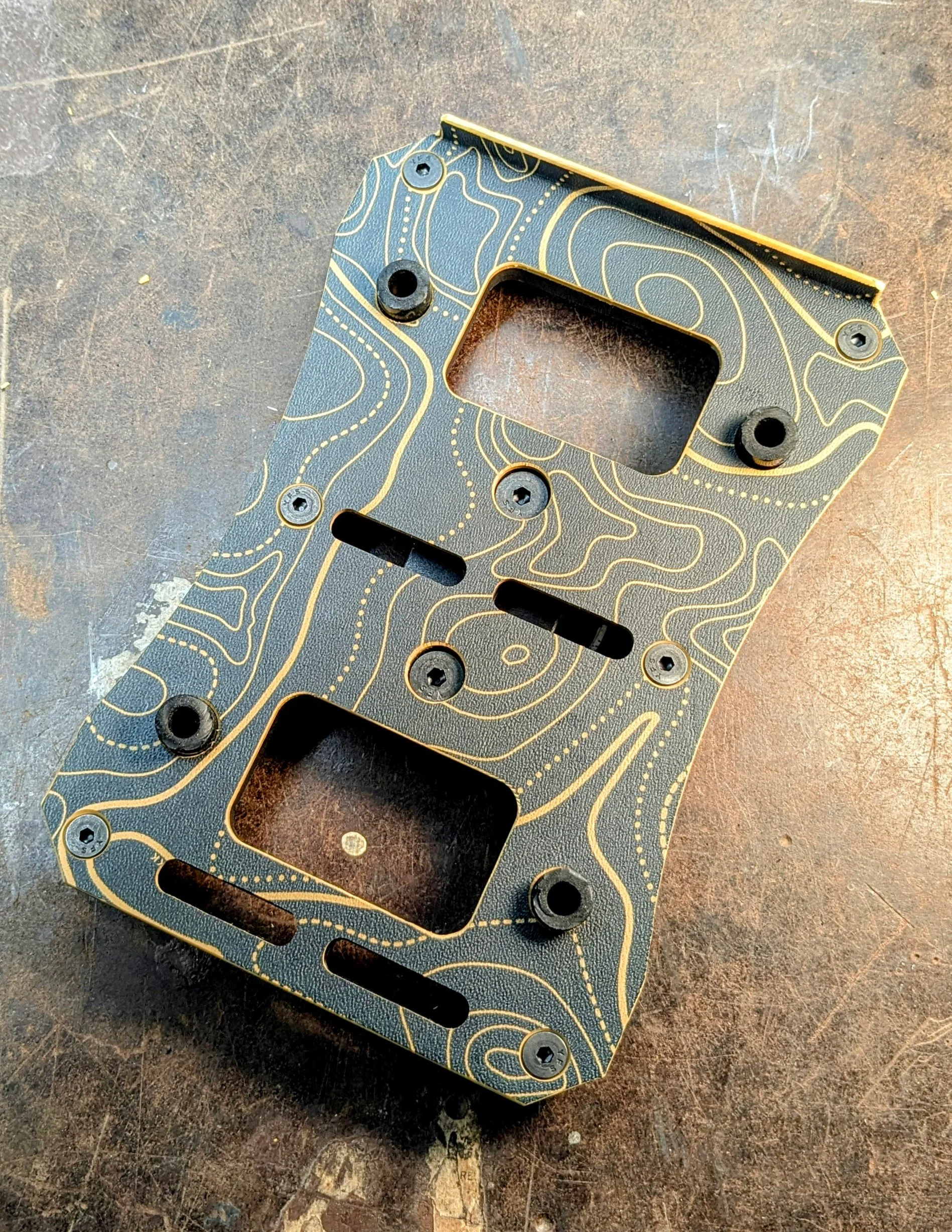

-Kydex top deck with a single lip for bag support or to hold small items (phone, DOPE book, Kestrel, etc.) when tilted to
sheet music stand orientation. It doesn’t abrade gear or scuff optics/ chassis: attached with countersunk screws for a
clean profile.
Attachment Capabilities: *Denotes new feature
*Magpul approved M-LOK slots located at the center and edge for mounting ARCA clamps, picatinny rails/ attachments, or
devices threaded for 1/4-20 fasteners.
-Multiple 1/4-20 tapped holes around the lightening windows for mounting ball heads, binos, GoPros, etc., or use for
lashing.
-Perimeter arcs cut to cradle your shooting bag when placed mouth down.
Notes & Care:
-ARCA rail screw torque: 35 in/lbs (reapply thread locker if retorquing).
-Avoid over-tightening Kydex mounting screws to prevent damage.
-Follow Magpul prescribed M-LOK tightening specs.
